Meanwell driver IP66 outdoor high mast LED flood light 600W
Product Item:HL-SP12-600W
Description

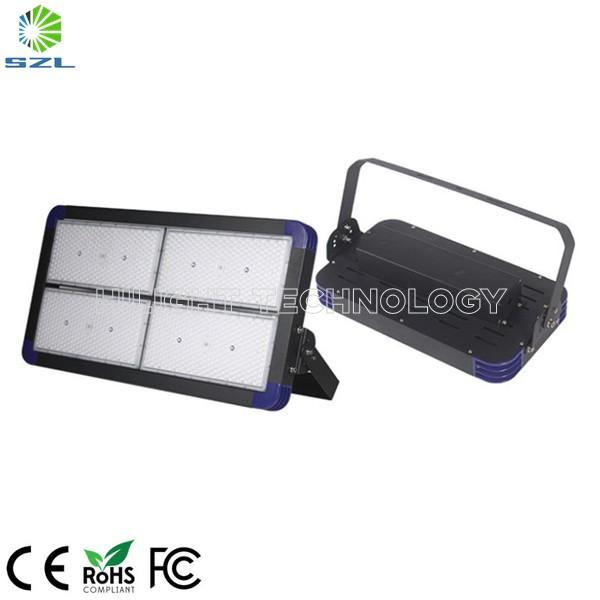

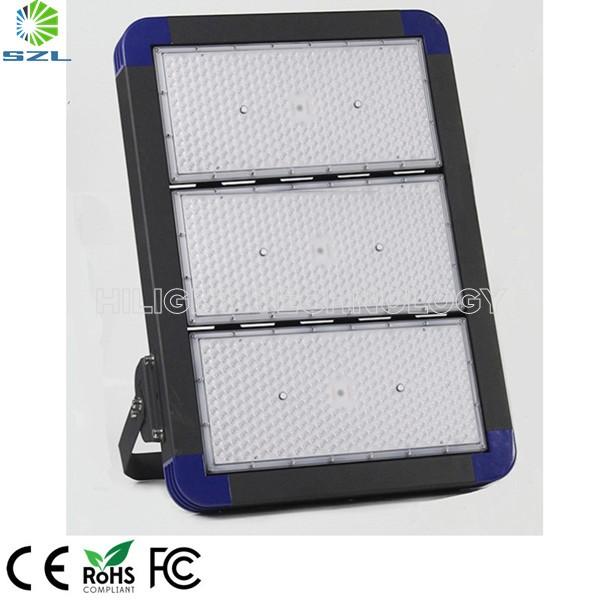

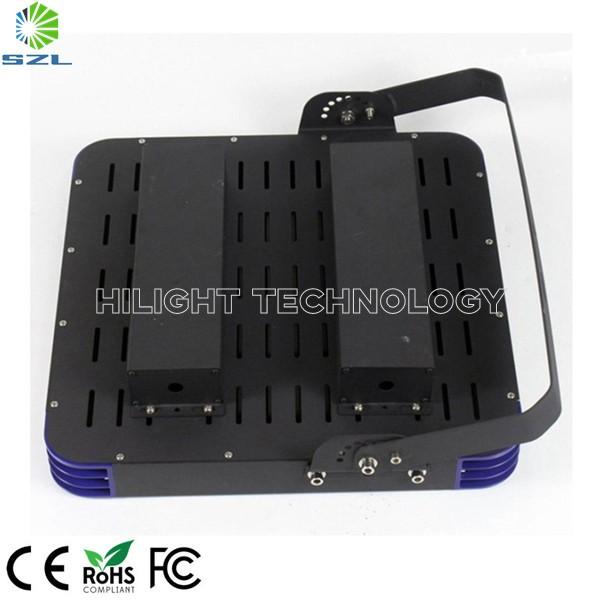

600W IP66 outdoor area LED flood light
The product is designed with high efficiency LED light source 160LM/W, >95% working efficiency drivers which has the characteristics of high brightness, energy saving and environmental protection, simple installation, stable and reliable operation, long service life and so on.
Main Technical data:
| Model No. | HL-SP12-600W |
| Power consumption | 600 Watts |
| Input voltage | AC90-277V / 50-60Hz |
| LED Chip | Philips Lumileds 3030SMD |
| Lumens | 96,000LM @ 160LM/W |
| LED driver | Meanwell driver ELG series |
| Beam angle | 25o / 45o / 60o / 90o |
| CRI | Ra>75 |
| Power factor | >0.95 |
| Color temperature | 3000K - 6500K |
| THD | < 15 % |
| IP grade | IP66 |
| Efficiency of the driver | >95% |
| Surge protection | >10KV |
| Working temperature | -25ºC ~ 50ºC |
| Body material | Die-casting aluminum C |
| Bracket material | Stainless steel |
| Lifetime | >80,000 hours |
| Lamp dimensions | 615 x 470 x 100mm |
| Net weight | 16KG |

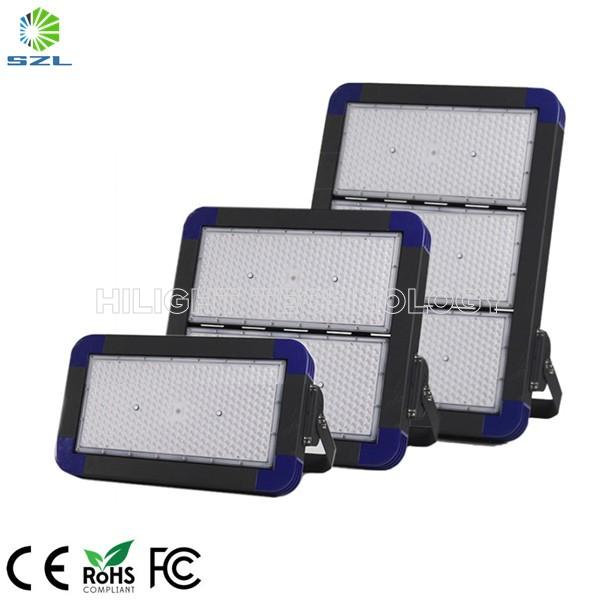

About the details:
Model No.
Power
LEDs Qty
Lumens
IP grade
HL-SP12-200
200W
343 x3030SMD
32,000
IP66
HL-SP12-400
400W
686 x3030SMD
64,000
IP66
HL-SP12-600
600W
1029 x3030SMD
96,000
IP66
HL-SP12-800
800W
1372 x3030SMD
128,000
IP66
HL-SP12-1200
1200W
2058 x3030SMD
192,000
IP66
HL-SP12-1600
1600W
2744 x3030SMD
256,000
IP66
