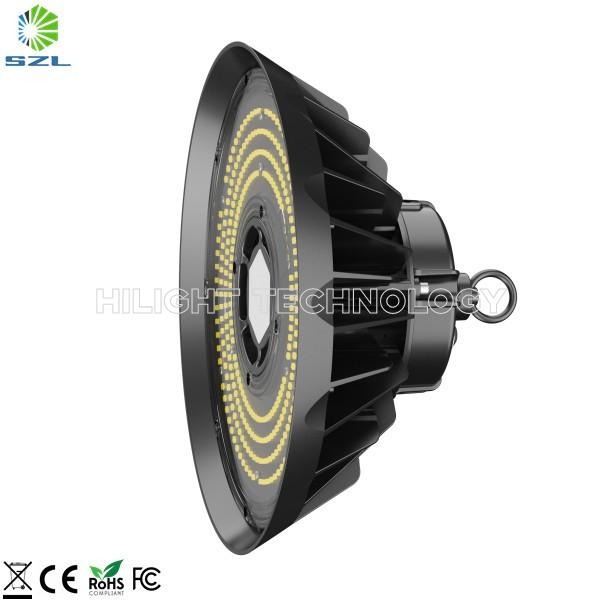

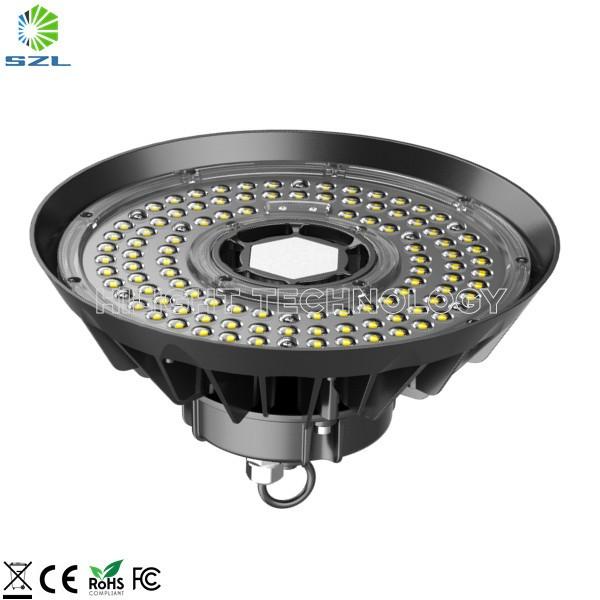

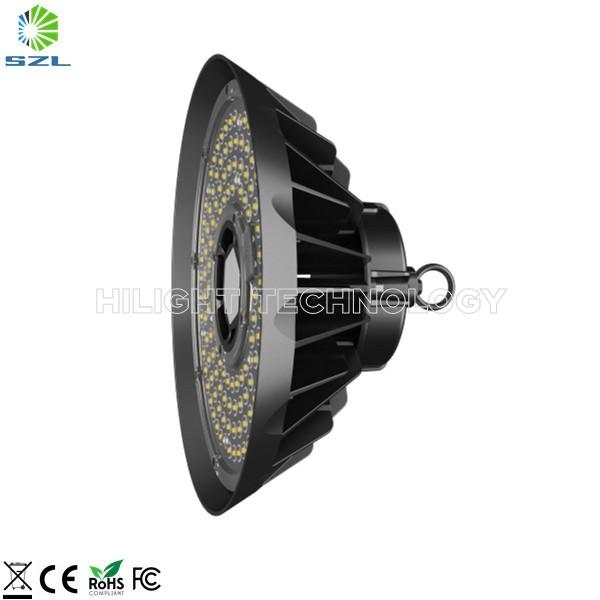

China Manufacturer Industrial Lighting High Power Anti Glare 240W UFO LED High Bay Light
Product Item:HL-5U-240W
Description
China Manufacturer Industrial Lighting High Power Anti Glare 240W UFO LED High Bay Light
Technical Data:
Item name
240W UFO LED High Bay Light
Power
240W
Light Source
SMD2835 Osram
LED Quantity
420pcs
LED Driver
ZHIHE/Sosen
Input Voltage
AC85-265V
Color Temperature
3000-6500K
Light Efficiency
150LM/W
Lumen
36,000LM
CRI
Ra.≥80
Power Factor
0.95
IP Rating
IP65
Beam Angle
60°, 90°, 120°
Materials
Aluminum
Operating Temp.
-25°C to+45°C
Applications
Warehouses, supermarket, stadium, workshops, garage, exhibition halls
Qty/CTN
1PC
G.W.
4.2KG
Lamp Dimensions
320*154mm
Carton Size
37*37*22cm
Lifespan
50,000 hours
Quality warranty
5 Years
Certificates
RoHS, EMC, LVD, CE, ISO9001
Watts & models:
ZHIHE
Sosen
Model
Power
LED Chip
LED Driver
G.W.
Carton Size
HL-5U-100W
100W
SMD2835-210pcs Osram
2.8KG
280*280*170mm
HL-5U-150W
150W
SMD2835-300pcs Osram
3.5KG
330*330*180mm
HL-5U-200W
200W
SMD2835-420pcs Osram
4.2KG
350*350*200mm
HL-5U-240W
240W
SMD2835-420pcs Osram
4.2KG
350*350*200mm
Dimensions:
240W
Product Description:
Instruction Manual:
Application:
Company Profile:
