AC85V to 265V Input Voltage High Light Efficiency 80W LED Street Light
Product Item:HL-2SL-80W
Description
AC85V to 265V Input Voltage High Light Efficiency 80W LED Street Light
Technical Data:
80W LED Street Light
80W
Osram Philips
SMD2835-192pcs SMD5050-144pcs
Sosen Meanwell ELG Meanwell XLG
AC85-265V
3000-6500K
140LM/W
11,200lm
80
0.95
IP66
T2-M, T3-M, TP1-5(S-M)
Aluminum
-25°C to +45°C
Trunk Road, Highways, Urban Street, Sidewalks Road, Overpasses, Driveway
1PC
4.5KG
519*297*111mm
56×34×15cm
50,000 Hours
5 Years
CE, ROHS, EMC, LVD, ISO9001
Item Name
Power
Light Source
LED Quantity
LED Driver
Input Voltage
Color Temperature
Light Efficiency
Lumen
CRI
Power Factor
IP Rating
Beam Angle
Materials
Operating Temp.
Applications
Qty/CTN
G.W.
Lamp Dimensions
Carton Size
Lifespan
Quality Warranty
Certificates
Watts & models:
| Model | Power | Lumens | Gros Weight | Dimension |
| HL-2SL-30W |
30W |
4,200LM | 3KG |
424*208*94mm |
|
HL-2SL-50W |
50W |
7,000LM | 3KG |
424*208*94mm |
|
HL-2SL-60W |
60W |
8,400LM | 3KG |
424*208*94mm |
|
HL-2SL-80W |
80W |
11,200LM | 4.5KG |
519*297*111mm |
|
HL-2SL-100W |
100W |
14,000LM | 4.5KG |
519*297*111mm |
|
HL-2SL-120W |
120W |
16,800LM | 4.5KG |
519*297*111mm |
|
HL-2SL-150W |
150W |
21,000LM | 5.5KG |
610*297*111mm |
|
HL-2SL-180W |
180W |
25,200LM | 5.5KG |
610*297*111mm |
|
HL-2SL-200W |
200W |
28,000LM | 6.5KG |
700*297*111mm |
|
HL-2SL-240W |
240W |
33,600LM | 6.5KG | 700*297*111mm |

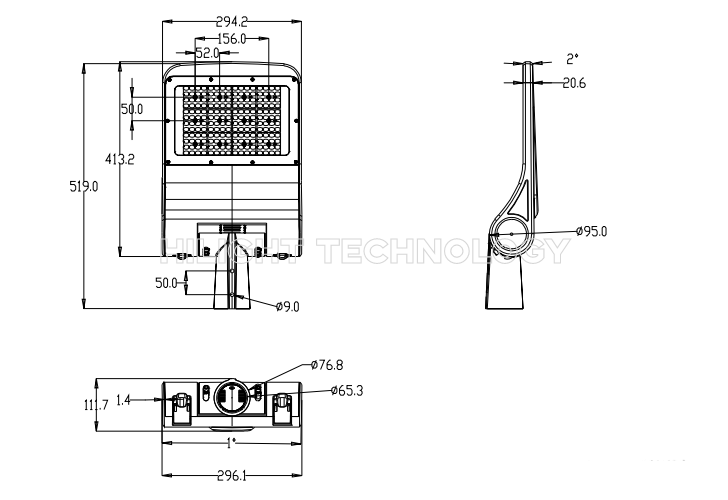

Dimensions:

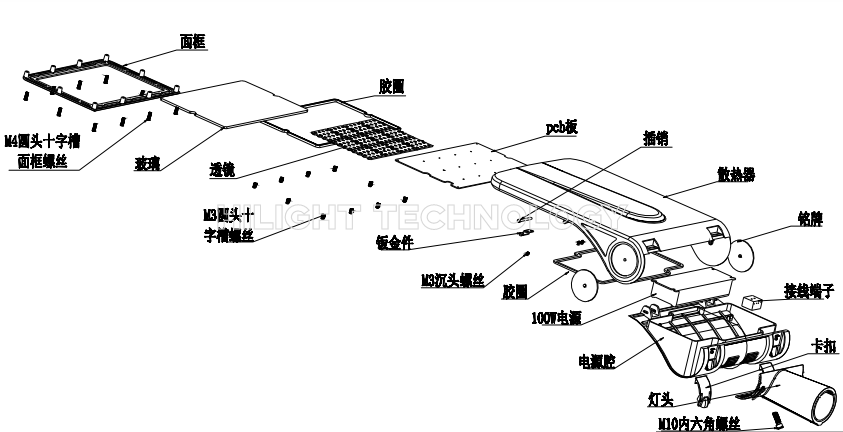

Explosive View:
Application:
Company Profile:
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2010 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM service with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 5-10 days for samples and 15 -20 days for big order such as 100pcs LED Street Lights.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for our standard led street lights, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defectives.
