Home Products LED Flood Light 120degree 30° 60° 90° 70*150° 200w led w
120degree 30° 60° 90° 70*150° 200w led wall bracket lamp
  1. 120degree 30° 60° 90° 70*150° 200w led wall bracket lamp
  2. 120degree 30° 60° 90° 70*150° 200w led wall bracket lamp
  3. 120degree 30° 60° 90° 70*150° 200w led wall bracket lamp
  4. 120degree 30° 60° 90° 70*150° 200w led wall bracket lamp
  5. 120degree 30° 60° 90° 70*150° 200w led wall bracket lamp

120degree 30° 60° 90° 70*150° 200w led wall bracket lamp

Product Item:HL-FD03-200W

Led Flood Light  , 200w Led Tunnel Light  , Outdoor Lighting  , Led Lamp  , 200W Led Flood Light
Send Inquiry Live chat

Description

IP66 150LM/W 250W 200W Wall mounted Led Flood Light

Technical Data:

Power 200Watts
Output 30,000LM, 150LM/W
Dimensions 386x414x51mm
Input voltage AC85-265V / 50-60Hz
LED type 2835SMD, Philips chip
CRI Ra80
CCT 3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K
Beam angle 120° / 30° / 60° / 90° / 70*150°
Materials Die-casting aluminum
IP defend IP66
Power factor >0.92
Lifetime: 50,000hours
Warranty 5 years
Working temp. -30 - 45°C
Bracket U shape & rotatable
Finish color Black

Features:

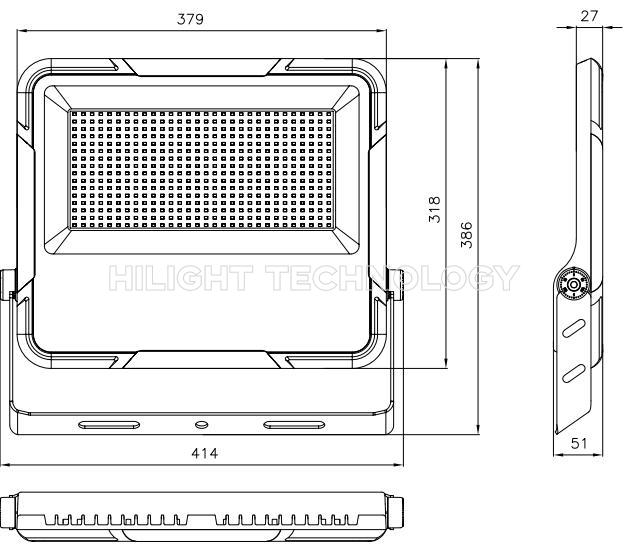

Dimensions:

Light Distribution:


Explosive view:


Installation:


Application:



Our Workshop:

We have 8 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 5-10 days for samples, 10-20 days for 100pcs, 20-30 days for 500pcs.
Each lamp pass 24 hours aging test and high voltage (10KV) surge test.


Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.


About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door.
By train, by air or by sea for bulky order.


FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2010 and we have our own factory, supply duable super quality items and reliable after-sale service.


2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.


3. How long will it spend for our orders to be sent out?
It takes 5-10 days for samples and 15 -20 days for big order such as 1000pcs LED Flood Lights.


4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for our standard led flood lights, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defectives.
