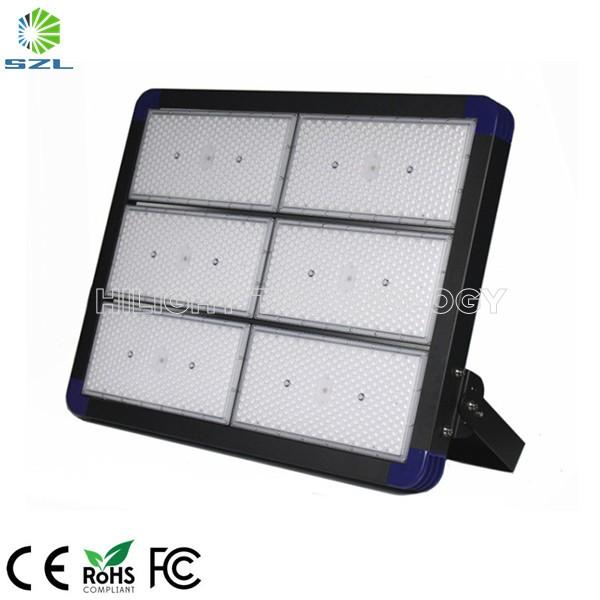

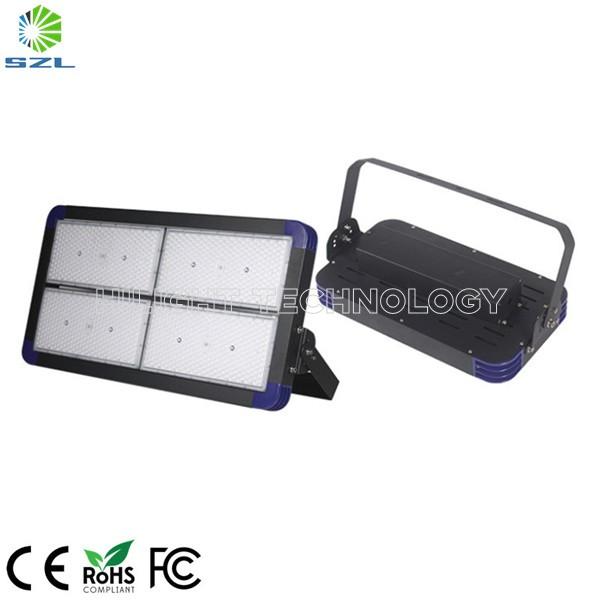

1200W IP66 outdoor area LED flood light
Product Item:HL-SP12-1200W
Description
1200W IP66 outdoor area LED flood light
The product is designed with high efficiency LED light source 160LM/W, >95% working efficiency drivers which has the characteristics of high brightness, energy saving and environmental protection, simple installation, stable and reliable operation, long service life and so on.
Main Technical data:
| Model No. | HL-SP12-1200W |
| Power consumption | 1200 Watts |
| Input voltage | AC90-277V / 50-60Hz |
| LED Chip | Philips Lumileds 3030SMD |
| Lumens | 192,000LM @ 160LM/W |
| LED driver | Meanwell driver ELG series |
| Beam angle | 25o / 45o / 60o / 90o |
| CRI | Ra>75 |
| Power factor | >0.95 |
| Color temperature | 3000K - 6500K |
| THD | < 15 % |
| IP grade | IP66 |
| Efficiency of the driver | >95% |
| Surge protection | >10KV |
| Working temperature | -25ºC ~ 50ºC |
| Body material | Die-casting aluminum C |
| Bracket material | Stainless steel |
| Lifetime | >80,000 hours |
| Lamp dimensions | 797 x 846 x 100mm |
| Net weight | 27KG |
About the details:

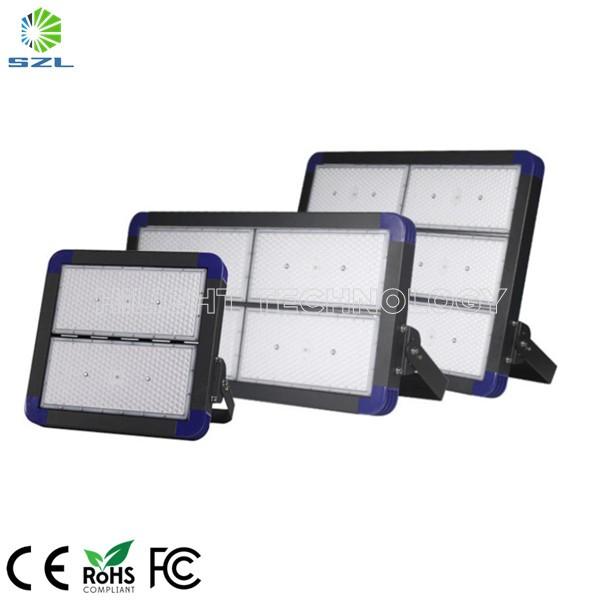

| Model No. | Power | LEDs Qty | Lumens | IP grade |
| HL-SP12-200 | 200W | 343 x3030SMD | 32,000 | IP66 |
| HL-SP12-400 | 400W | 686 x3030SMD | 64,000 | IP66 |
| HL-SP12-600 | 600W | 1029 x3030SMD | 96,000 | IP66 |
| HL-SP12-800 | 800W | 1372 x3030SMD | 128,000 | IP66 |
| HL-SP12-1200 | 1200W | 2058 x3030SMD | 192,000 | IP66 |
| HL-SP12-1600 | 1600W | 2744 x3030SMD | 256,000 | IP66 |
